NEW QUESTION # 10
Exhibit:

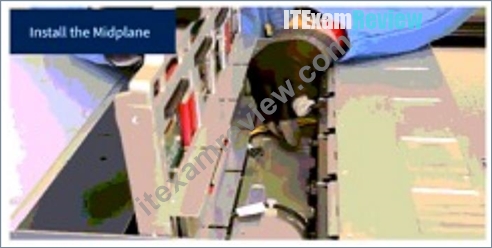

When installing the midplane bracket back into the chassis, what design feature in the chassis helps you properly align the midplane bracket?
- A. Arrows in the chassis
- B. Guide stickers in the chassis
- C. Grooves in the chassis
- D. Velcro in the chassis
Answer: C
Explanation:
Why Do Supermicro Systems Use Grooves for Alignment?
InSupermicro MI300X systems, themidplane bracket is aligned using built-in grooves in the chassis.
* Ensures Perfect Alignment
* The midplane mustline up perfectlywith power, PCIe, and data connections.
* Grooves act as physical guides, ensuringprecise placementwithout guesswork.
* Prevents Installation Errors
* Without grooves, technicians mightinstall the midplane slightly misaligned, leading to connection failures.
* Ensures PCIe and MCIO lanes align correctly, preventing signal loss.
* Supports a Tool-Free Installation
* Grooves allowdrop-in installation, reducingmanual adjustments.
* Minimizes risk of flexing or damaging the midplane PCB.
Why Other Options Are Incorrect?
* A (Guide stickers in the chassis)# Stickersmay be present for labeling but do not physically align the midplane.
* C (Arrows in the chassis)# Arrows arevisual indicators only, not physical alignment tools.
* D (Velcro in the chassis)# Velcro isnot used in midplane installation.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Hardware Guideexplicitly states thatgrooves in the chassis help with midplane bracket alignment.
NEW QUESTION # 11
When securing the PCIe tray, why must it be screwed in at one end of the chassis first before installing another tray at the opposite end?
- A. Because the tray will not function
- B. Because the tray will get pushed out
- C. Because the cables in the tray will get in the way
- D. Because the tray will break
Answer: B
Explanation:
Why Secure One End of the PCIe Tray First?
* TheSupermicro MI300X chassis is designed for modular tray installation, meaningsecuring one end firstensures:
* Proper alignment of PCIe slots and connectors
* Stable mountingto prevent unwanted movement
* Prevention of unnecessary strain on installed expansion cards
What Happens If Both Ends Are Handled at the Same Time?
* ThePCIe tray may shift out of alignment, making it difficult to properly install other components.
* Misalignment can cause:
* PCIe devices to not seat properly
* Power or data cables to be obstructed
* Increased risk of mechanical damage during reinstallation
Step-by-Step Correct Installation Process:
#Step 1:Align the PCIe tray with its designated mounting slots.#Step 2:Secure screws onone end firstto hold the tray in place.#Step 3:Adjust the other end and ensureproper seatingbefore fully tightening all screws.# Step 4:Reconnect all PCIe cables and verify system connectivity.
Why Other Options Are Incorrect?
* B (Cables getting in the way)# While cable management is important, the main issue istray movement
, not cable obstruction.
* C (Tray will not function)# The tray will functiononce properly seated, butincorrect installation can lead to PCIe misalignment.
* D (Tray will break)# The tray is designed for durability; it will not break unlessexcessive force is applied.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Service Guideconfirms thattrays must be secured at one end first to ensure proper alignment.
NEW QUESTION # 12

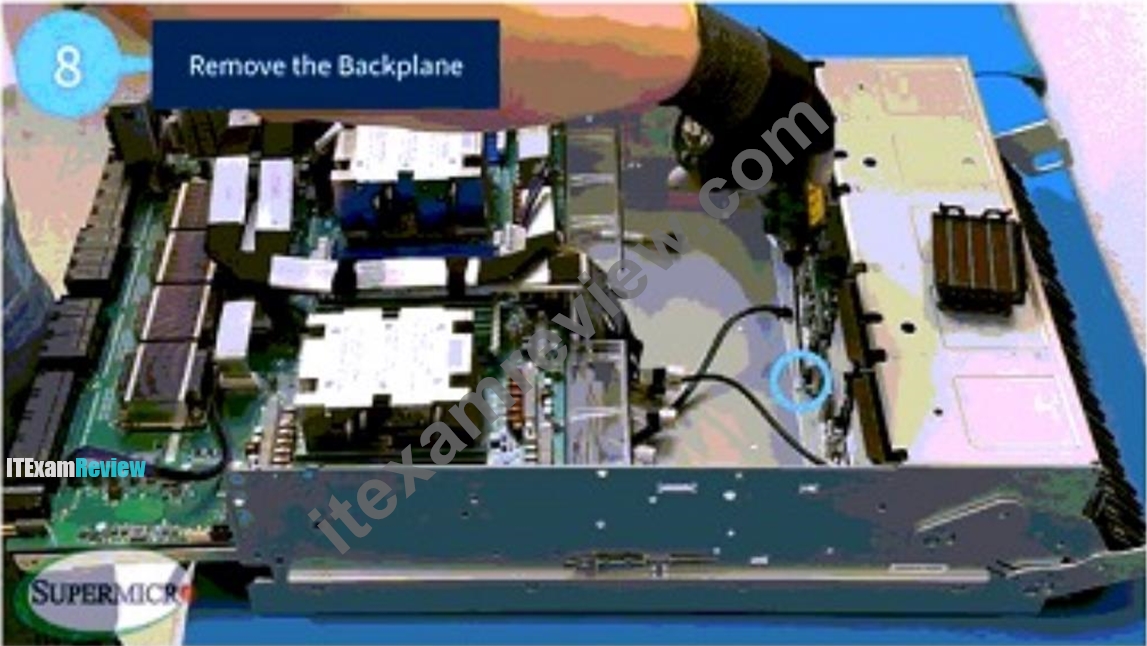

Before removing the NVMe backplane, which component must be removed first?
- A. PCIe Expansion Cards
- B. Motherboard Tray
- C. GPU Tray
- D. Power Supply Unit
Answer: B
Explanation:
Why Must the Motherboard Tray Be Removed First?
TheNVMe backplane in Supermicro MI300X systemsis installedbehind the motherboard tray. This means themotherboard tray acts as a barrier, andit must be removed before gaining access to the NVMe backplane.
Step-by-Step Removal Process:
* Power Down and Disconnect Power Supply Units (PSUs)
* Turn off the system anddisconnect all power cablesto avoid electrical damage.
* Remove PCIe Expansion Cards(if applicable)
* Some systems have PCIe devicesmounted over the NVMe backplane, which must be removed first.
* Disengage the Motherboard Tray
* The motherboard tray must be unscrewed and carefully lifted outbefore accessing the NVMe backplane.
* Now, Remove the NVMe Backplane
* Once the motherboard tray is out, theNVMe backplane is fully exposed, allowing it to be removed.
Why Other Options Are Incorrect?
* A (GPU Tray)# The GPU tray isnot blocking direct accessto the NVMe backplane.
* C (Power Supply Unit)# The PSU isnot directly obstructingthe NVMe backplane, although it should be powered down.
* D (PCIe Expansion Cards)# These may need to be removedif installed over the NVMe backplane, but themotherboard tray is the primary component that blocks direct access.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Installation Guideexplicitly states thatthe motherboard tray must be removed before handling the NVMe backplane.
NEW QUESTION # 13
In order to remove the midplane from the AS-8125GS-TNMR2 system, and after you remove all the PSUs, you will need to disengage 3 trays. What is the correct order for disengagement?
- A. Disengage the GPU tray first, then the motherboard tray, and the PCIe tray last.
- B. Disengage the PCIe tray first, then the motherboard tray, and the GPU tray last.
- C. Disengage the motherboard tray first, then the PCIe tray, and the GPU tray last.
- D. Disengage the PCIe tray first, then the GPU tray, and the motherboard tray last.
Answer: D
Explanation:
Thecorrect order for removing trays before midplane removalis:
* Disengage the PCIe tray first
* This tray must be removed first becauseit provides access to the underlying system components
.
* Remove the GPU tray
* TheGPU tray sits between the PCIe and motherboard traysand must be disengaged after PCIe components are cleared.
* Remove the motherboard tray last
* The motherboard tray isthe final component before midplane removal.
* Removing it lastensures full accessto the system componentswithout obstructing critical connections.
Why other options are incorrect?
* B (Motherboard before GPU tray)# The motherboard tray must be removedlastto avoid disconnecting system-critical connections too early.
* C (Motherboard tray first)# Removing the motherboard firstrisks damagingPCIe and GPU components.
* D (GPU tray first)# TheGPU tray is dependent on the PCIe tray being removed first, making this order incorrect.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 System Removal Guideoutlines the correct order fortray disengagement before midplane removal.
NEW QUESTION # 14
When reinstalling the motherboard tray, is it necessary to align it properly with the chassis grooves before securing it with screws? True or False?
- A. True
- B. False
Answer: A
Explanation:
Importance of Proper Alignment in Motherboard Tray Installation
Themotherboard tray in Supermicro MI300X systemsisprecisely designedto fit intopre-existing grooves in the chassis.
* Ensures a Secure Fit
* If the motherboard tray isnot aligned with the grooves, itmay not seat correctly, causing structural instability.
* Prevents Cable Routing Issues
* Improper alignmentcan interfere with airflow and cable routing, leading to cooling inefficiencies.
* Guarantees Proper PCIe and Power Connections
* Misalignmentcan cause PCIe slots and power connectors to be slightly off-position, leading to failed component detection.
Proper Installation Steps for the Motherboard Tray:
#Step 1:Slide the motherboard tray into thechassis groovesfor proper alignment.#Step 2:Ensure it isflush with the chassisbefore securing screws.#Step 3:Tighten screws evenly to prevent misalignment.
Why is False Incorrect?
* IfFalse were correct, it would imply that the motherboard tray can be installedwithout aligning it properly, which isnot possiblein Supermicro MI300X systems.
* The systemwill not function properlyif the motherboard tray is misaligned.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Service Manualconfirms that themotherboard tray must be aligned with the grooves before securing it with screws.
NEW QUESTION # 15
What equipment is required in order to remove the heatsink from the motherboard tray?
- A. T20 Torx bit
- B. PH2 Phillips screwdriver
- C. T40 Torx bit
- D. T30 Torx bit
Answer: D
Explanation:
To remove theheatsink from the motherboard tray,a T30 Torx bit is required. This tool ensuresproper torque applicationandprevents damageto both the heatsink and the motherboard.
Why a T30 Torx bit is necessary?
* Supermicro MI300X GPU systems use precision heatsink retention mechanisms.
* Theheatsink screws are secured with factory torque settingsand require aT30 Torx bitfor safe removal.
* Using an incorrect tool (Phillips screwdriver, T20, or T40) can strip the screw heads, making it difficult to remove the heatsink without causing damage.
Incorrect Answers Explained:
* A (PH2 Phillips screwdriver)# Not strong enough for heatsink screws, which requirehigh torquefor proper seating.
* C (T20 Torx bit)# Toosmall, risksstrippingthe screws.
* D (T40 Torx bit)# Toolarge, does not fit the heatsink screws.
Official Documentation Reference:
* Supermicro MI300X Service Manualspecifies that aT30 Torx bitmust be used to remove the heatsink without damaging the motherboard.
NEW QUESTION # 16
To remove the midplane, use both hands to lift the midplane bracket straight up and out of the chassis. True or False?
- A. True
- B. False
Answer: A
Explanation:
Understanding the Midplane in Supermicro MI300X Systems
Themidplane in the Supermicro MI300X GPU systemacts as acentral connection hubthat links various system components, such as:
* NVMe storage backplanes
* PCIe interconnects
* Power distribution pathways
* Motherboard to GPU communication lanes
Because of itsdelicate nature and multiple connectors,it must be removed carefullyto avoiddamaging fragile electrical contacts.
Correct Midplane Removal Process
Tosafely remove the midplane, follow theseSupermicro-recommendedsteps:
* Ensure all power is fully disconnected
* Shut down the systemproperly.
* Remove all power cablesanddisconnect all PSUs.
* Ground yourself using an anti-static wrist strapto preventelectrostatic discharge (ESD) damage to sensitive components.
* Detach all necessary trays and cables
* Disengage the PCIe tray, motherboard tray, and GPU trayto ensure clear access.
* Disconnect all MCIO cables, power cables, and ribbon cablesto prevent accidental pulling or tearing.
* Use both hands for removal
* Place both hands firmly on the midplane bracket.
* Lift the midplane bracket straight upto ensure a smooth removal process.
* Avoid angling or twisting the midplaneas this candamage its connector pins.
* Ensure no resistance is felt
* If the midplanedoes not lift easily,double-check for any remaining screws or connected cables before applying force.
Why Using Both Hands is Crucial?
* Prevents bending or flexing
* The midplane is alarge PCB with multiple connection points.Using both hands ensures even lifting pressure, preventing PCB bending.
* Avoids strain on connectors
* If removed at an angle, it canstress delicate connectors, leading to permanent damage.
* Ensures a firm grip
* Some components inside the systemcan be heavy. Using both handsensures stability and reduces risk of dropping.
Why Other Answers Are Incorrect?
* If False were correct, it would suggest improper handling techniques that can damage the system.
* Supermicro documentation clearly states that the midplane must be removed using both hands and in an upright motion.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Disassembly Guideinstructs technicians to useboth hands and lift straight upto prevent damage.
NEW QUESTION # 17
In the motherboard tray, the AOM bracket is partially covered by the support bar. So, you'll need to remove the support bar first before you can remove the AOM bracket. True or False?
- A. True
- B. False
Answer: A
Explanation:
Why Must the Support Bar Be Removed First?
* Thesupport baris areinforcement structureinside the chassis that providesmechanical stabilityto components, including theAOM bracket.
* Since the AOM bracket is partially covered by the support bar, you mustremove the bar firstto gain full access.
Step-by-Step Removal Process:
#Step 1:Remove the screws securing the support bar.#Step 2:Carefully lift and remove the support bar without tilting it.#Step 3:Now, unscrew and remove the AOM bracket.
Why is False Incorrect?
* IfFalse were correct, it would suggest that the AOM bracket can be removedwithout touching the support bar, which isnot possibledue to obstruction.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Disassembly Manualconfirms that thesupport bar must be removed first before accessing the AOM bracket.
NEW QUESTION # 18
Where is the one screw that needs to be removed in order to remove the AOM bracket?
- A. On top of the fan tray
- B. On the rear of the power supply
- C. On top of the hard drive tray
- D. On the side of the motherboard tray
Answer: D
Explanation:
Understanding the AOM Bracket in Supermicro MI300X Systems
TheAOM (Add-On Module) bracketis used to holdoptional expansion cards, such as:
* RAID controllers
* Additional network interface cards (NICs)
* BMC/IPMI modules for system management
Why is the Screw Located on the Side of the Motherboard Tray?
* The AOM bracket is secured to the chassis via a single screwthat is located on theside of the motherboard tray.
* This designkeeps the bracket firmly in placewhile still allowing foreasy removal when needed.
* Removing the screw first prevents unnecessary strain on the bracketand ensuressafe removal of the AOM card.
Why Other Options Are Incorrect?
* A (On top of the hard drive tray)# The hard drive tray does not secure the AOM bracket.
* B (On top of the fan tray)# Fans do not hold down the AOM bracket.
* D (On the rear of the power supply)# The power supplyis not directly connected to the AOM bracket.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Expansion Module Guidespecifies that theAOM bracket is secured by a single screw located on the side of the motherboard tray.
NEW QUESTION # 19
Exhibit:

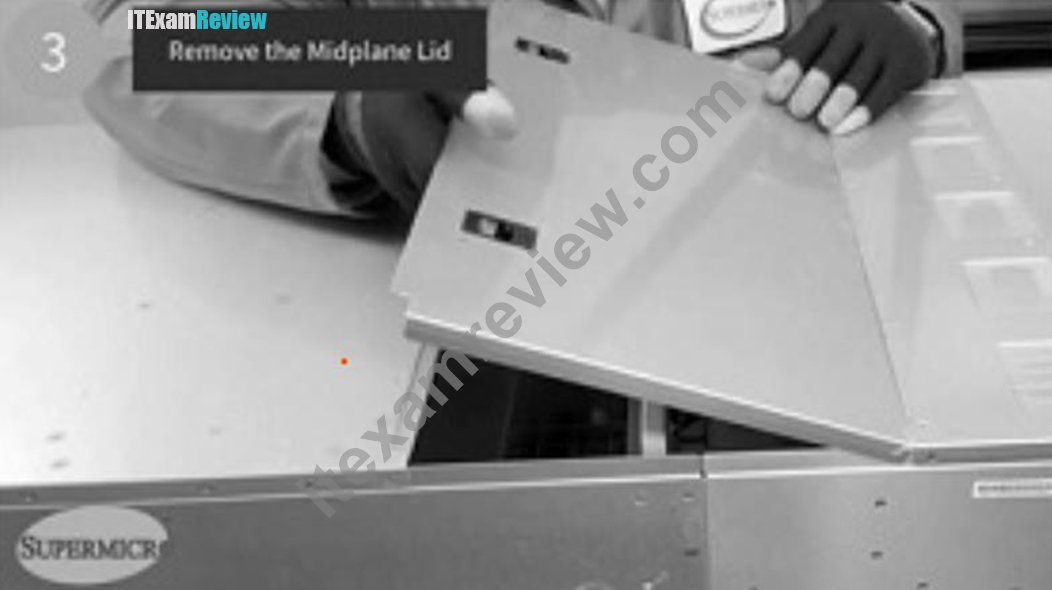

To remove the midplane lid on the AS-8125GS-TNMR2 system, use your fingers to push in on the two handles toward the PCIe tray, then slowly lift the midplane lid up and out of the chassis at an angle.
True or False?
- A. True
- B. False
Answer: A
Explanation:
* Themidplane lid removal processis designed to betool-freeand follows aspecific sequence to avoid damage.
* Thecorrect methodis:
* Push in on the two handleslocated near thePCIe tray.
* Slowly lift the midplane lid up, ensuring it does not catch on other components.
* Remove the lid at an angleto avoid damaging adjacent connectors.
Why this method is used?
* Theangled removalhelpsavoid contact with fragile connectorson the midplane.
* Forcing the lid straight upcould damage PCIe slots or motherboard connectors.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Disassembly Manualdetails thecorrect method for removing the midplane lid.
NEW QUESTION # 20
Which cables need to be reconnected after installing the NVMe backplane?
- A. Only the Power Cable
- B. Only the SAS Cable
- C. i2C Cable, SAS Cable, Power Cable
- D. Only the i2C Cable
Answer: C
Explanation:
NVMe Backplane Connection Requirements in Supermicro MI300X Systems
Afterinstalling the NVMe backplane, the following cablesmust be reconnectedfor proper system functionality:
* i2C Cable(Inter-Integrated Circuit Cable)
* Responsible fordata communication, sensor monitoring, and system management functions.
* Ensures thatstorage devices are properly detectedby the motherboard.
* SAS Cable(Serial Attached SCSI)
* Used forhigh-speed storage connectivityin hybrid NVMe/SAS systems.
* Ensuresdata integrity and fast data transfers between SSDs and the system controller.
* Power Cable
* Supplies power to the NVMe backplaneandconnected drives.
* Without this,NVMe drives will not receive power and will not be detected by the system.
Why Other Options Are Incorrect?
* B (Only the SAS Cable)# While the SAS cable is important,the power cable and i2C cable are also required.
* C (Only the i2C Cable)# The i2C cable isnot sufficient by itself; the NVMe backplaneneeds both power and data connections.
* D (Only the Power Cable)# Power is needed, butdata connectivity through SAS and i2C is essential for full functionality.
Official Documentation Reference:
* Supermicro NVMe Storage System Guideconfirms thati2C, SAS, and power cables must all be reconnected after NVMe backplane installation.
NEW QUESTION # 21
Once you have removed all 12 screws that secure the motherboard to the motherboard tray, what is the proper way to remove the motherboard?
- A. Make sure to touch the pins and shove the motherboard out of the tray.
- B. Avoid touching the pins and carefully slide the motherboard slightly out of the rear of the tray, then place one hand underneath the rear of the tray and continue sliding the motherboard out of the tray without tilting it up or down.
- C. Tilt the chassis to shake it out of the tray.
- D. Use one hand the entire time to remove the motherboard tray and hold the motherboard in the bottom center as if you're holding a pizza.
Answer: B
Explanation:
Removing the motherboardrequires careful handlingto preventbending pins, PCB damage, or static discharge.
Correct Removal Process:
* First, remove all 12 screws securing the motherboard.
* Avoid touching any exposed pins or contacts.
* Carefully slide the motherboard slightly out of the rear of the tray.
* Support it with one hand underneath to prevent bending.
* Continue sliding it out without tilting it.
Why other options are incorrect?
* A (Touch pins & shove motherboard)# Touching pins cancause electrostatic damageandforcing it out can damage components.
* B (Hold like a pizza)# Usingone handdoes not provide enough support, increasing the risk of bending or dropping the motherboard.
* C (Tilt chassis & shake it out)# This is acompletely impropermethod and canseriously damage connectors and PCB components.
Official Documentation Reference:
* Supermicro MI300X System Removal Guideadvises toslide the motherboard out carefully while supporting it underneath.
NEW QUESTION # 22
Exhibit:
4 screws secure the backplane to the motherboard tray that you will need to remove, and they are spaced equidistant across the backplane. True or False?
- A. True
- B. False
Answer: A
Explanation:
Why Are the Screws Equidistant?
* Thebackplane in Supermicro MI300X systemsis alarge PCB (printed circuit board) that connects NVMe SSDs and PCIe devices to the motherboard.
* It is secured byfour screws placed equidistantlyto:
* Distribute mechanical stress evenly
* Ensure stability against vibrations
* Prevent warping or misalignment of connectors
Proper Removal of the Backplane Screws:
#Step 1:Identify and locate the4 securing screws on the backplane.#Step 2:Loosen them in across-pattern (diagonal pairs) to prevent stress buildup.#Step 3:Carefully lift the backplanestraight upto avoid bending connector pins.
Why This Layout Is Important?
#Equidistant screw spacing ensures even pressure distribution, preventing PCB flexing or cracking.# Improper screw removal (one side first) can cause misalignment or undue stress on connectors.
Why False Is Incorrect?
* IfFalse were correct, it would imply that screws are placedrandomly or unevenly, which isnot the case in Supermicro MI300X systems.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Installation Manualconfirms thatthe backplane is secured with 4 evenly spaced screws for structural integrity.
NEW QUESTION # 23
Before reinstalling the motherboard tray, what critical step should be taken to ensure proper installation?
- A. Screw in the motherboard tray at random points before aligning it
- B. Shake the tray to confirm it fits properly
- C. Align the motherboard tray with the grooves in the chassis
- D. Tilt the motherboard tray at an angle before placing it
Answer: C
Explanation:
Why Must the Motherboard Tray Be Aligned With the Grooves?
* TheSupermicro MI300X chassisis designed withbuilt-in alignment groovesthat helpprecisely position the motherboard tray.
* If the tray is notaligned properly:
* ThePCIe slots and mounting points will not line up correctly.
* Thebackplane connections may be misaligned, leading to system boot errors.
* Improper installation can block airflow, leading to potential overheating issues.
Step-by-Step Proper Reinstallation Process:
#Step 1:Identify thealignment grooveson the chassis.#Step 2:Slowly slide the motherboard tray into place, ensuring it follows the grooves.#Step 3:Verify that the tray sitsflushwith the chassis.#Step 4:Secure the tray with screws only after confirming proper alignment.
Why Other Options Are Incorrect?
* B (Shake the tray to confirm fit)# Shaking the traycan loosen connectors and potentially damage components.
* C (Screw in randomly before aligning)# If screws are installedbefore alignment, it can causeuneven seating and difficulty in securing other components.
* D (Tilt the motherboard tray at an angle)# The tray should be insertedstraight into the grooves, not at an angle.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Installation Guideconfirms thatthe motherboard tray must be aligned with the chassis grooves before securing it.
NEW QUESTION # 24
Once you remove the midplane lid from the AS-8125GS-TNMR2 system, how many total screws must be removed from the sides of the chassis in order to remove the midplane bracket?
- A. 8 screws total (4 on each side of the chassis)
- B. 6 screws total (3 on each side of the chassis)
- C. 2 screws total (1 on each side of the chassis)
- D. 4 screws total (2 on each side of the chassis)
Answer: D
Explanation:
To remove themidplane bracketin theAS-8125GS-TNMR2 system, you must remove4 screws total(2 on each side of the chassis).
Why 4 screws?
* The midplane bracket is secured by 2 screws per sideto maintain its structural integrity.
* Loosening all 4 screws allows safe removal without excessive force.
* Forcing the bracket without removing the screws risks damaging the mounting points.
Incorrect Answers Explained:
* A (2 screws total)# Not enough, as screws on both sides must be removed.
* C (8 screws total)# More than necessary;only 4 screws hold the midplane bracket.
* D (6 screws total)# Incorrect count;only 2 screws per side are required.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Installation Guideexplicitly states thattwo screws on each side (4 total) must be removed to release the midplane bracket.
NEW QUESTION # 25
After removing the screws from the midplane bracket, what cables must be removed?(Choose 2 answers.)
- A. Flat panel/ribbon cable
- B. MCIO cable
- C. SATA cable
- D. Power cable
Answer: A,B
Explanation:
Themidplane bracketinSupermicro MI300X GPU systemsconnects multiple crucial components, including storage, PCIe devices, and power distribution systems.
Why must the MCIO and Flat Panel/Ribbon cables be removed?
* MCIO Cable (Option B)#
* MCIO (Multi-lane Cable I/O)cables are responsible forhigh-speed NVMe communication between the motherboard and storage components.
* These cables must bedisconnected before midplane removal, asforcing them out without removal can cause connector damage.
* Flat Panel/Ribbon Cable (Option C)#
* Theflat panel/ribbon cableis used forsystem communication, front panel connectivity, or sensor data transmission.
* If not removed, it can be torn or pinched, leading tomalfunctioning front panel indicators, buttons, or management controllers.
Incorrect Answers Explained:
* A (Power cable)# Power cables are usuallysecured independentlyand arenot directly attached to the midplane bracket. Removing them isnot a required stepfor midplane bracket removal.
* D (SATA cable)# SATA cables arefor legacy storage systemsanddo not need to be disconnected unless working on SATA-specific backplanes.
Official Documentation Reference:
* SupermicroService ManualforAS-8125GS-TNMR2explicitly states thatMCIO cables and ribbon cables must be removed before handling the midplane bracketto preventsystem damage.
NEW QUESTION # 26
What could happen to the system if the cables connecting the AOM card to the motherboard are not returned to their proper port locations?
- A. The customer will be happy.
- B. The AOM card or the system will not work properly.
- C. The system will function normally.
- D. The system will self-destruct within 5 minutes.
Answer: B
Explanation:
TheAOM (Add-On Module) cardis a crucial expansion module used inSupermicro MI300X GPU systems for enhanced connectivity (e.g., RAID controllers, additional network interfaces, or IPMI management).
What happens if AOM cables are misplaced?
* The AOM card may not function
* The system depends onspecific cabling configurationsto communicate with the AOM module.
* Incorrect connections can causehardware failures, incorrect detection, or data transmission errors.
* PCIe lane allocation may be disrupted
* Many AOM cards usePCIe lanesfor data transmission.Misplacing cables can disable or limit their bandwidth, leading to performance degradation.
* BIOS may not detect the AOM card
* Some AOM cards requirefirmware initialization, which only happens if the correct ports are used.
Incorrect Answers Explained:
* A (System will self-destruct)# The systemwill not explode, butit may fail to boot properly.
* B (Customer will be happy)# Misconfigured AOM cards typically lead tosystem errors and dissatisfied customers.
* D (System will function normally)# If cables are misplaced,the system will not function properly.
Official Documentation Reference:
* Supermicro MI300X GPU System Hardware Guidestates thatAOM cables must be reconnected in their proper ports for the system to function correctly.
NEW QUESTION # 27
To disengage a PCIe, motherboard, or GPU tray on the AS-8125GS-TNMR2 system, loosen the screws on either side of the tray, then slowly pull the tray out to disengage it. True or False?
- A. True
- B. False
Answer: A
Explanation:
Why Must the Screws Be Loosened First?
* ThePCIe, motherboard, and GPU trays in Supermicro MI300X systemsaresecured by screws on both sidesto ensure:
* Structural stability
* Vibration resistance
* Secure connection of PCIe lanes and data paths
Proper Tray Removal Process:
#Step 1:Identify the tray to be removed (PCIe, motherboard, or GPU).#Step 2:Loosen screws on both sides to release tension on the tray.#Step 3:Slowly and evenlypull the tray outto avoid damaging connectors.#Step
4:Support the tray from the bottomwhile sliding it out to prevent bending.
Why This Method Is Important?
* Preventing Connector Damage# Pulling the tray without loosening screwscould damage PCIe connectorsor misalign the board.
* Avoiding Strain on Other Components# A stuck traycould put pressure on adjacent cables and connectors.
* Ensuring a Safe Removal# The slow and controlled movementreduces the risk of accidentally dropping or flexing the tray.
Why False Is Incorrect?
* IfFalse were correct, it would suggest that the tray can be removedwithout loosening screws, which is not possibledue to the secure mounting system.
Official Documentation Reference:
* Supermicro AS-8125GS-TNMR2 Hardware Maintenance Guideconfirms thatloosening screws and carefully pulling the tray out is the correct disengagement procedure.
NEW QUESTION # 28
......
Free SMI300XS Exam Files Downloaded Instantly 100% Dumps & Practice Exam: https://examkiller.itexamreview.com/SMI300XS-valid-exam-braindumps.html
